Capacity : 75-1000 ton | Stroke : 30-100 mm | Working Pressure : 700 Bar

Features / Application :

» Compact with ram stopper design ideally suited where space is limited
» Lifting application requiring sustained load holding in Infrastructure projects,    heavy fabrication
» Low height design for low clearance areas
» Tilt saddle to take care of angular loading
» Internal stopper prevents ram ejection
» Used in low clearance confined area
» Ideally suited for precision lifting, alignment of machinery, heavy structures and    girders requiring sustained load holding

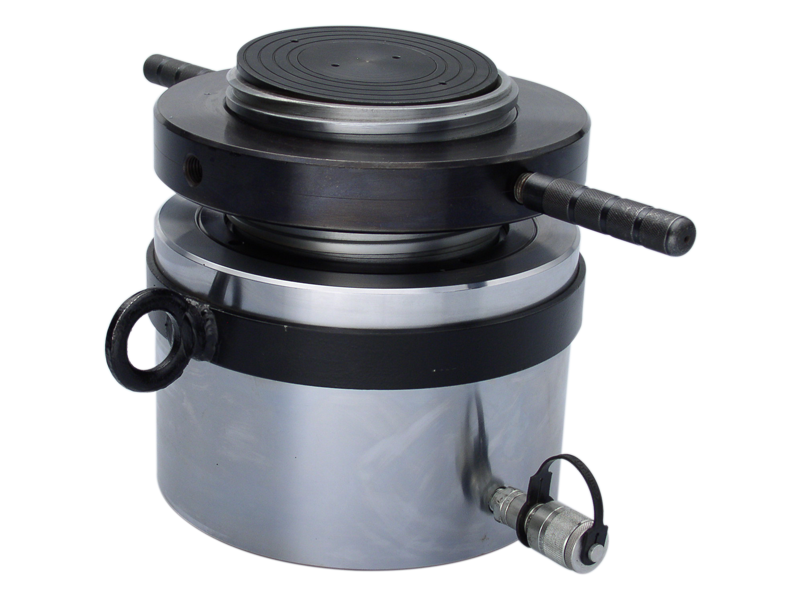

Threaded Ram, Spring Return

Capacity
(ton)
Capacity
(kN)
Stroke
(mm)
Model Effective area
(cm2)
Oil Cap.
(cc)
Closed height
(mm)
Wt. (Approx.)
(kg.)
Suitable pump
200 2199 50 CSTS 200-50 314.2 1571 200 75 OHP-2P4/2-5
250 2661 45 CSTS 250-45 380.1 1711 220 100 OHP-2P4/2-5
250 2661 75 CSTS 250-75 380.1 2851 250 105 OHP-2P4/2-5
250 2661 100 CSTS 250-100 380.1 3801 275 118 OHP-2P4/2-8
300 3167 100 CSTS 300-100 452.4 4524 290 162 OHP-2P4/2-8
400 4948 40 CSTS 400-40 706.9 2827 235 220 OHP-2P4/2-8
500 4948 50 CSTS 500-50 706.9 3534 320 310 OHP-2P4/2-8

Threaded Ram, Load Return

Capacity
(ton)
Capacity
(kN)
Stroke
(mm)
Model Effective area
(cm2)
Oil Cap.
(cc)
Closed height
(mm)
Wt. (Approx.)
(kg.)
Suitable Pump
100 1077 150 CLTS 100-50 153.9 770 175 40 OHP-2P4/2-5
100 1077 75 CLTS 100-75 153.9 1155 200 47 OHP-2P4/2-5

Plain Ram, Load Return

Capacity
(ton)
Capacity
(kN)
Stroke
(mm)
Model Effective area
(cm2)
Oil Cap.
(cc)
Closed height
(mm)
Wt. (Approx.)
(kg.)
Suitable pump
250 2661 45 OLPVLS 250-45 380.1 1711 140 65 OPU-2-20-HS
400 4008 45 OLPVLS 400-45 572.6 2576 160 112 OPU-2-20-HS
500 4948 45 OLPVLS 500-45 706.9 3181 170 158 OPU-2-20-HS
800 7939 45 OLPVLS 800-45 1134.1 5104 190 275 OPU-2-20-HS
1000 9930 45 OLPVLS 1000-45 1418.6 6384 220 392 OPU-2-20-HS

With Cribbing Block

Capacity
(ton)
Capacity
(kN)
Stroke
(mm)
Model Effective area
(cm2)
Oil Cap.
(cc)
Closed height
(mm)
Wt. (Approx.)
(kg.)
Suitable pump
75 1077 130 CSLS 75-30 153.9 462 125 17 OHP-2P4-2-5
100 1077 60 CSLS 100-60 153.9 924 160 25 OHP-2P4-2-5
200 2199 55 CSLS 200-55 314.2 1728 180 63 OHP-2P4-2-5
250 2661 60 CSLS 250-60 380.1 2281 200 86 OHP-2P4-2-8
250 2661 100 CSLS 250-100 380.1 3801 240 102 OHP-2P4-2-8
